Product Introduction

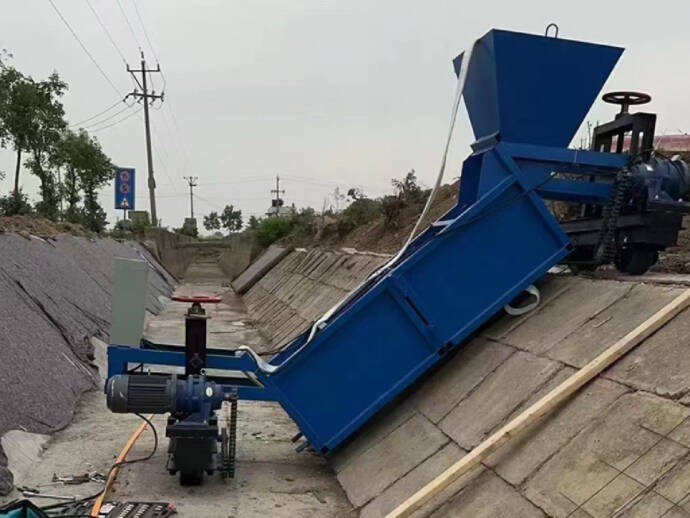

The 3m river slope paver is an electric self-propelled concrete slope slipform machine, specially developed for river regulation and riverbank protection water conservancy projects. With a standard effective paving width of 3000mm, it is fully adaptable to humid and muddy waterfront construction sites.

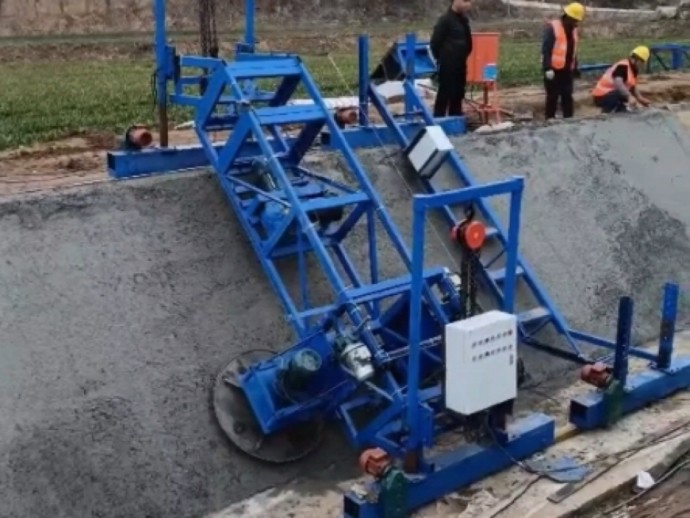

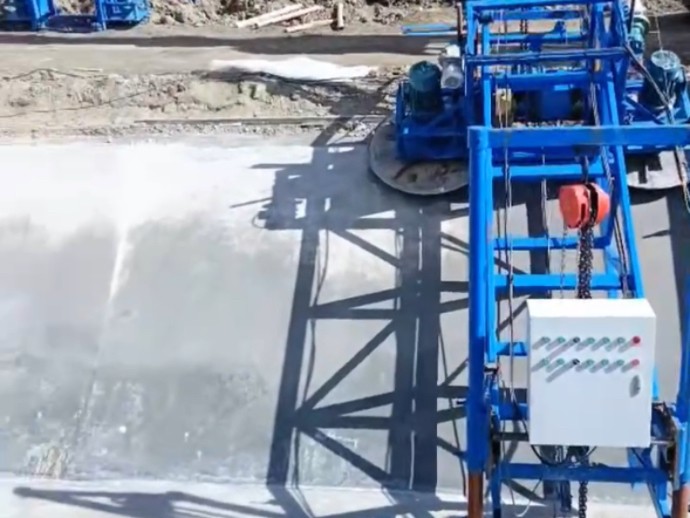

This machine requires no manual formwork erection. After concrete feeding, it moves automatically along the slope and completes the whole process of material distribution, high-frequency vibration, extrusion compaction and surface finishing in one continuous operation.
The finished concrete slope features high density, strong erosion resistance, excellent anti-seepage performance and smooth integrated surface. It effectively reduces labor costs and shortens construction duration. Non-standard customized production is available according to customers’ engineering drawings.
Core Advantages
Application Scenarios
Domestic and international river regulation and riverbank flood protection projects

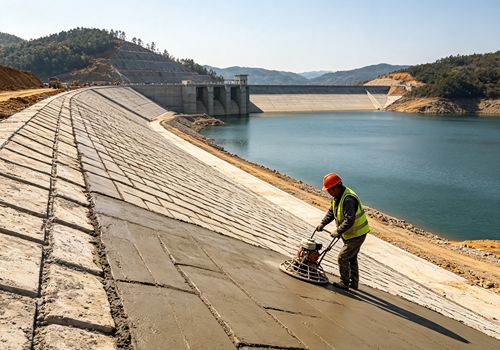

Concrete slope lining and protection for reservoirs and dams

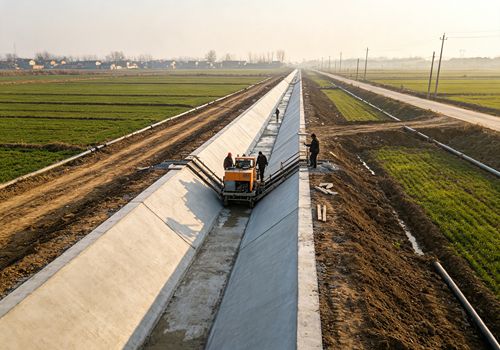

Slope paving and drainage protection for farmland irrigation channels
Rural water conservancy construction and small and medium-sized flood control infrastructure projects
Specification
| Parameter Item | Technical Specification |
|---|---|
| Equipment Name | River Slope Paver / Concrete Slope Slipform Machine |
| Travel Mode | Motor-driven |
| Applicable Slope Ratio | 1:0.7 and above |
| Maximum Paving Slope Length | 38 m (customized according to river channel design) |
| Paving Thickness | 80‑300 mm, adjustable according to construction requirements |
| Paving Working Width | Unlimited width, non-standard customization available |
| Vibrating System | Vibrator / Vibrating Plate |

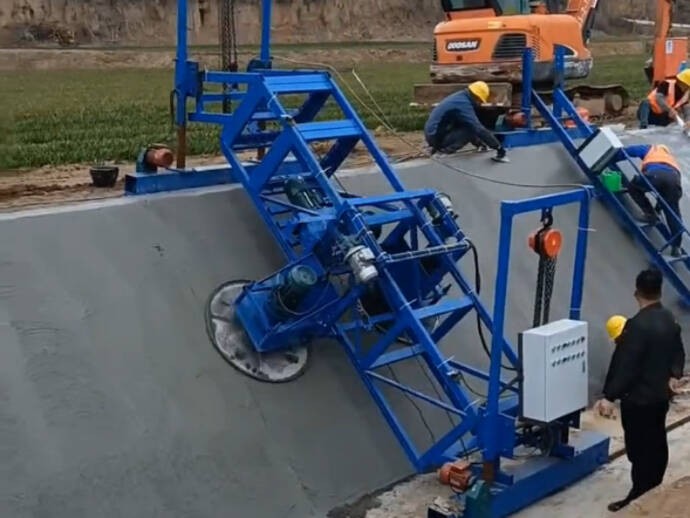

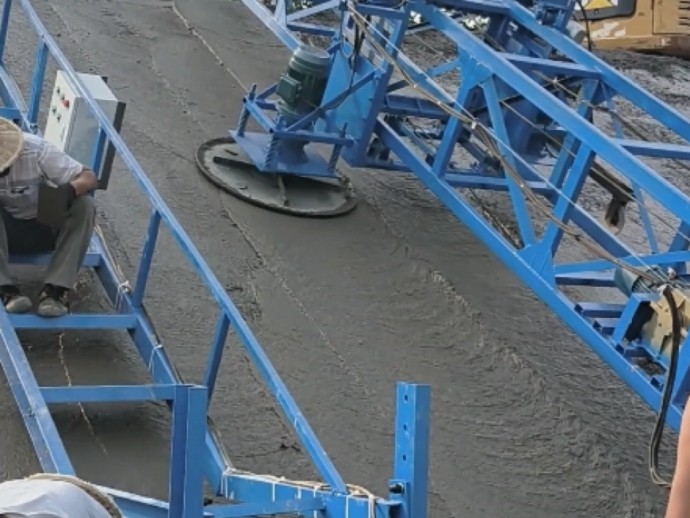

| Power Configuration | Four-wheel drive travel, one-step box-type paving forming, automatic lifting, intelligent finishing with twin trowel discs, manual platform for defect touch-up |
| Rated Power | 16–25 kW |
| Applicable Concrete Grade | Commercial concrete, mixed concrete on site |
| Operation Mode | Button operation / Remote control |
| Slope Adjustment System | Manual slope adjustment via lead screw lifting |
| Forming Process | Material distribution, vibration compaction and slope surface finishing completed sequentially |
| Applicable Working Conditions | River regulation, riverbank protection, reservoir slopes, irrigation area slopes; humid, muddy and waterside construction sites |
After-sales Service
-
1
Provide complete equipment drawings, English operation manuals and maintenance instructions
-
2
Complete machine debugging and strict inspection before delivery
-
3
Provide overseas online technical guidance, including installation, operation and troubleshooting video tutorials
-
4

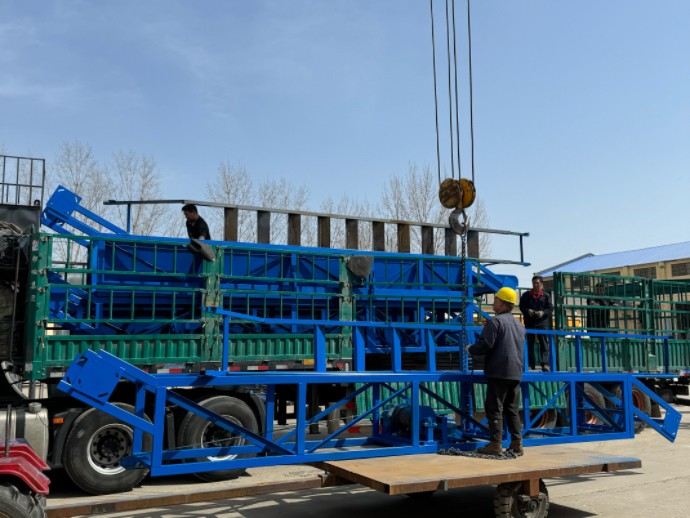

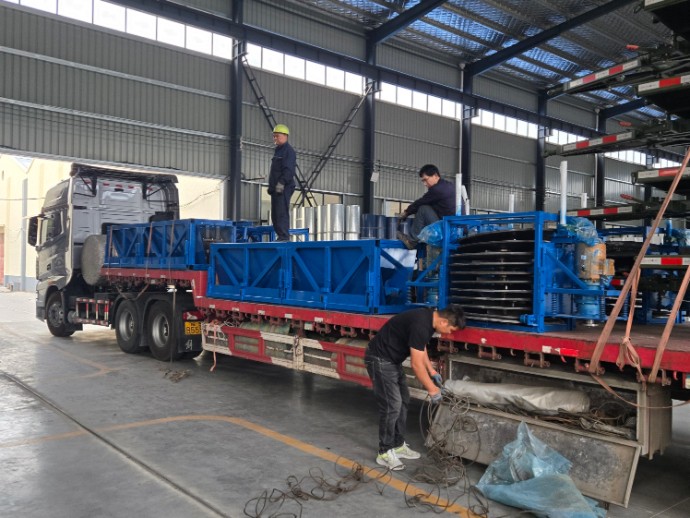

Supply mass wearable parts, and spare parts can be delivered together with the main machine in containers
-
5
Support spare parts supply and OEM customization
