Ultra-Long Custom River Slope Paver (35m & Above Customizable)

Product Positioning

The 20m river slope paver is a large-scale slope construction equipment that balances super-long working span and flexible operation performance. It is widely applicable to medium and large water conservancy projects and municipal slope engineering. Making up for the low efficiency of conventional short-span pavers, the machine realizes one-time continuous paving on long slopes, achieving an optimal balance between high construction accuracy and comprehensive project cost.

Product Introduction

Most conventional slope pavers on the market are limited to a working span within 10 meters. Breaking traditional industry limitations, our factory develops ultra-large-span river slope pavers that support customized working lengths of 35 meters and above. This equipment is specially designed for large-scale water conservancy projects, including high-slope concrete lining for reservoir dams, long-distance river bank slope protection, and high-standard slope construction for large irrigation areas.

The whole machine adopts a high-strength modular truss structure with optimized mechanical design, ensuring stable operation and no structural deformation during large-span construction. It integrates concrete distribution, vibration, leveling, and surface finishing into one automatic process, adapting to various slope gradients and effectively preventing concrete segregation and slurry leakage on long inclined surfaces.

The machine adopts rail-type traveling mode and can be equipped with an automatic leveling system to ensure uniform thickness and flatness for ultra-long slope paving.

To solve transportation and installation difficulties of super-long equipment, the machine adopts a segmented modular design for easy disassembly, transportation, and fast on-site assembly. Based on mature construction technology, we provide one-to-one customized solutions according to actual project parameters such as slope length, gradient, and paving thickness.

This equipment greatly reduces segmented construction joints, improves the overall anti-seepage and anti-scouring performance of the slope, and effectively shortens the construction period of large water conservancy slope projects.

Ultra-Large Span Customization, Breaking Industry Limitations

Breaking the conventional working span limit of 10 meters for ordinary slope pavers in the market, our machine supports ultra-long span customization of 35 meters and above. It is perfectly applicable for huge slope projects such as large reservoir dams and long-distance river bank slope protection. It realizes one-time continuous paving and greatly reduces construction joints caused by segmented construction.

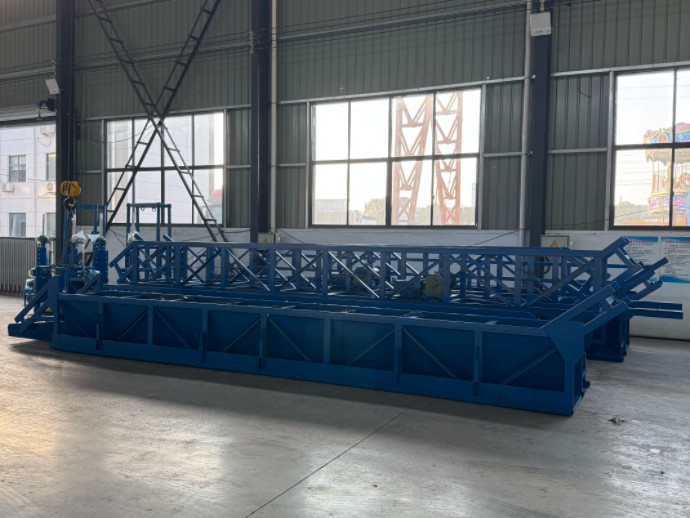

High‑strength Structural Design, Stable and Durable

Adopting high‑strength modular truss structure with mechanical reinforcement and optimization, the machine resists deformation and runs smoothly under large‑span working conditions. Core components are made of wear‑resistant materials to adapt to complex field working conditions, maintaining stable performance even under long‑term continuous construction.

Integrated Operation, Outstanding Construction Efficiency

Integrated with concrete distributing, high‑frequency vibration, leveling and surface finishing functions, it requires no cooperation of multiple separate devices. Suitable for various slope gradients, it effectively avoids concrete segregation and slurry leakage on long slopes, greatly shortening the construction cycle of large‑scale slope projects.

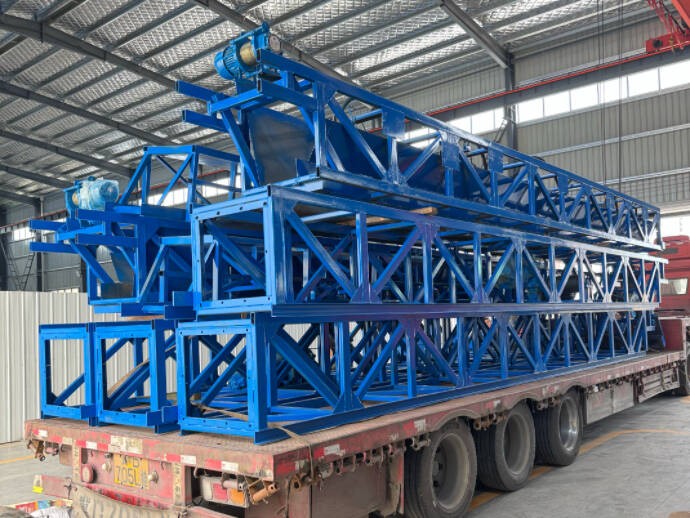

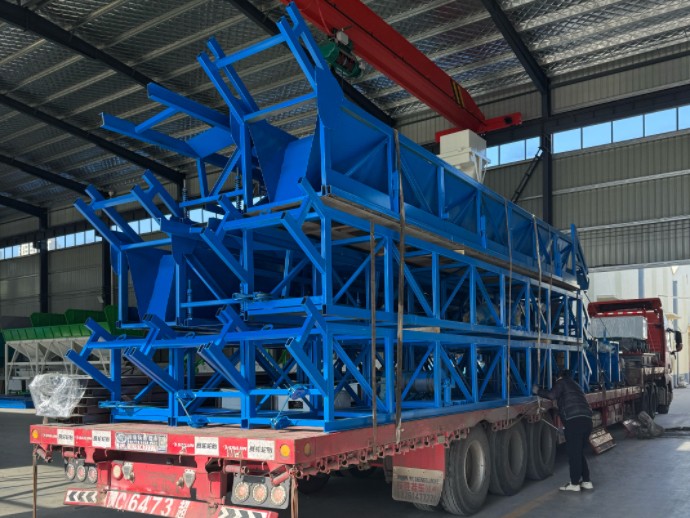

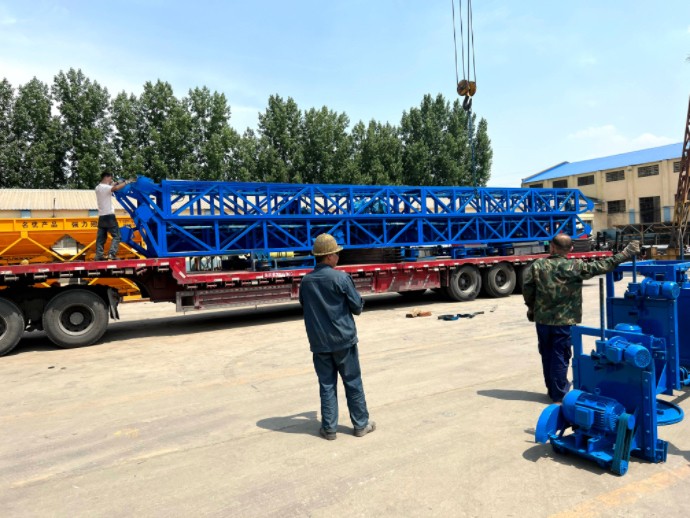

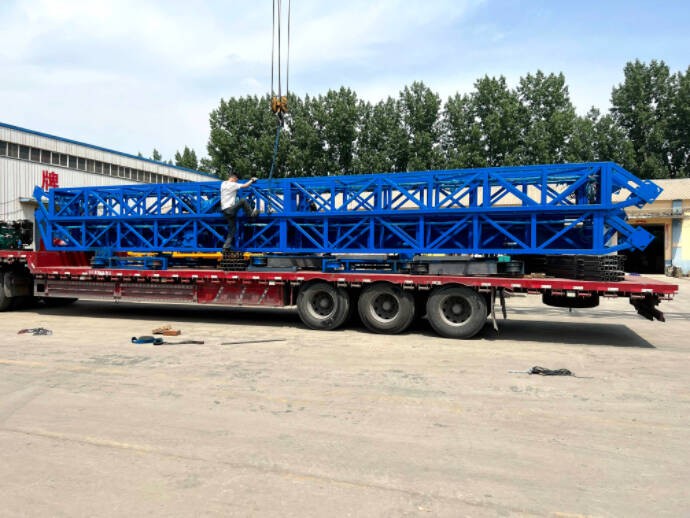

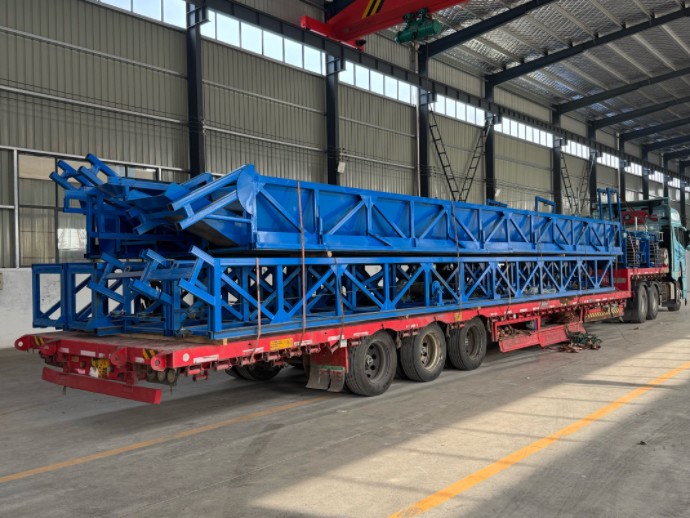

Modular Assembly & Disassembly, Excellent Transport Compatibility

Adopting segmented modular design, the ultra‑long equipment can be quickly disassembled and assembled for long‑distance transportation and on‑site installation. Meanwhile, customized slope gradient and paving thickness are available to meet personalized construction requirements of different projects.

Core Advantages

Ultra‑large Span Customization for Large‑scale Projects

Breaking conventional industry size limits, working span of 35 meters and above can be customized. Specially built for large water conservancy and municipal slope projects. It completes long‑slope paving in one pass, reduces construction joints, and improves slope anti‑seepage performance as well as overall appearance.

Stable & Reliable Structure for Safer Construction

High‑strength truss structure together with reinforced chassis ensures no obvious shaking or deformation under large‑span operation, guaranteeing operator safety and paving accuracy. It adapts to harsh working conditions such as steep field slopes and complex terrain, delivering better stability than conventional short‑span pavers.

Integrated Efficient Operation to Cut Costs & Improve Efficiency

Multiple construction procedures are integrated, eliminating secondary manual finishing and greatly saving labor costs. The high‑frequency vibration system ensures concrete compaction and reduces later maintenance work, lowering comprehensive project costs.

Flexible Customization & Convenient Maintenance with Strong Adaptability

Full‑range non‑standard customization is supported for slope gradient, paving thickness and overall machine dimensions to match actual project demands. Modular design facilitates disassembly, transportation and later maintenance. Wearing spare parts are in stock with timely after‑sales response.

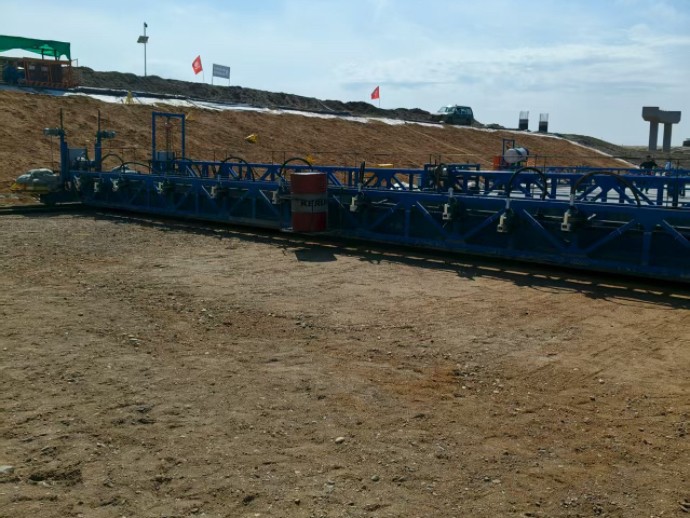

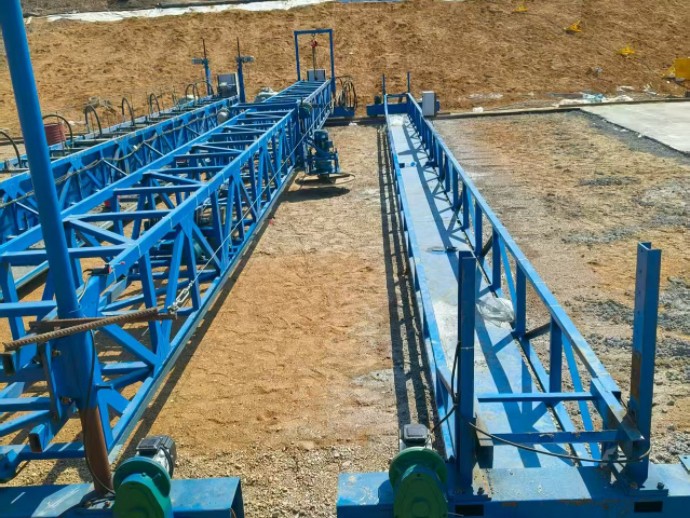

Application Scenarios

Domestic and overseas river regulation, river embankment flood control and bank protection projects

Concrete slope lining and protection for reservoirs and dam slopes

Slope protection and drainage paving for farmland irrigation channel projects

Rural water conservancy construction and medium-to-large flood control infrastructure projects

Specification

Parameter Item	Technical Specification
Equipment Name	River Slope Paver / Concrete Slope Slipform Forming Machine
Travel Mode	Motor-driven
Applicable Slope Ratio	1:0.7 and above
Maximum Paving Slope Length	38 m (customized as per river channel design)
Paving Thickness	80‑300 mm, adjustable according to construction requirements
Paving Working Width	Unlimited width; non-standard customization supported
Vibrating System	Vibrator / Vibrating Plate
Power Configuration	Four-wheel drive travel, one-step box-type paving forming, automatic lifting, intelligent finishing with double trowel discs, manual platform for defect touch-up
Rated Power	35–65 kW
Applicable Concrete Type	Commercial concrete, on-site mixed concrete
Operation Mode	Button operation / Remote control
Slope Adjustment System	Manual slope adjustment via lead screw lifting
Forming Process	Material distribution, vibration compaction and slope surface finishing completed sequentially
Applicable Working Conditions	River regulation, riverbank protection, reservoir slopes, irrigation area slopes; humid, muddy and waterside construction sites

After-sales Service

1
Provide complete equipment drawings, English operation manuals and maintenance instructions
2
Full‑machine commissioning and complete inspection & test before delivery
3
Overseas online technical guidance, including video tutorials for installation, operation and troubleshooting
4
Mass supply of wearing parts; spare parts can be shipped together in containers
5
Spare‑parts supply and OEM customization available

Remarks

Custom production is available according to required length
